The integrated keypad is offered to enter recharge TOKEN and check information by short codes.
HydroPro water vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Airtel, etc.
So users can top up water by mobile money without leaving the house.
BASIC FUNCTIONALITY
CIU

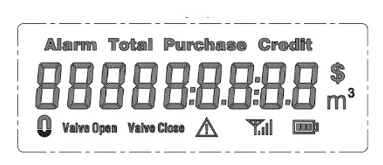

Tokens can only be keyed in when the ClU is powered on, when the ClU powered on and it read water meter first, if read success the ClU display the water meter information.ric type water meter,which comply with OIMLR49,ISO4064.And conforms to STS standard protocol.
The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.
- lngress protection IP68 waterproof
- UP to 8 years battery life
- Automatic valve controling
- STS Standard
- Real-time clock
- Utilities can set step price into meter on request
- Anti-Tamper Magnetic field protection
- LORA-RF communication ( CIU)
- Pay by mobile payment: M-PESA
| Nominal size | DN | mm | In-line | ||
| 15 | 20 | 25 | |||
| Maximum flow | Q4 | m³/h | 3 | 5 | 7 |
| Raito”R” | Q3/Q1 | 100 | 100 | 100 | |
| Permanently flow | Q3 | m³/h | 1.5 | 2.5 | 3.5 |
| Transitional flow | Q2 | 0.12 | 0.2 | 0.28 | |
| Minimum flow | Q1 | 0.03 | 0.05 | 0.07 | |
| Minimum reading | m³ | 0.0005 | |||
| Maximum reading | 99999 |
Dimensions and diagram
| Nominal size | Length | Width | Height | Connecting |
| mm | D | |||
| 15 | 165 | 101 | 124 | G3/4B |
| 20 | 195 | 101 | 124 | G1B |
| 25 | 225 | 101 | 124 | G5/4B |
